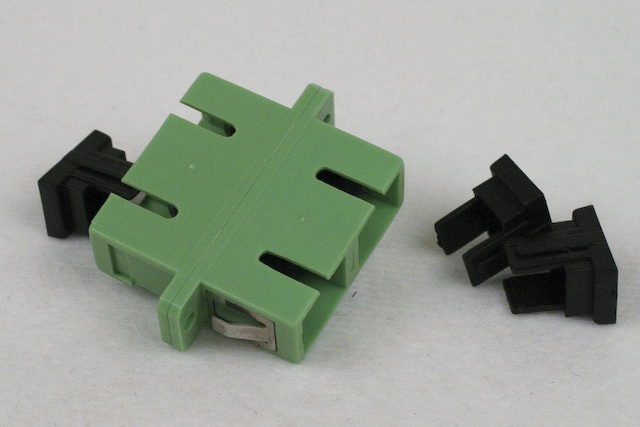

SC – SC Fiber Optic Adaptor
SC to SC, high standard ceramic sleeves. Support PC/UPC/APC Polishing, simplex/dupplex. plastic/meta, with/out flange.
Categories: Fiber Optic Adapter, Passive Component
- General Details
- Features
- Specifications
- Applications
General Details
Fiber Optic adapters (or called fiber optic adaptors, fiber optic coupler or fiber optic mating sleeves). It is used for connecting two terminated fiber cables (fiber connector). There are standard adaptors like SC-SC, FC-FC, and also there are hybrid adaptors like FC-LC, ST-SC, etc. Tarluz provide comprehensive fiber optic adaptors, including ST, SC, FC, LC, MTRJ, MPO and MU style fiber optic adapters for both multimode and single-mode fiber applications. We also can offer fiber adapter plates for ST-, SC-, MTRJ- or LC-type connections.
Features
- Compact design
- Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
- High precision alignment
- Low insertion and return loss and back reflection
- Choice of metal or plastic housing, mount styles & flange options
Specifications
Parameter | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 | ||||||
SM | MM | SM | MM | SM | |||||
PC | UPC | APC | PC | PC | UPC | PC | PC | APC | |
Insertion Loss (Typical) (dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Exchangeability (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Repeatability (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Durability | >1000 | >1000 | >1000 | ||||||
Operating Temperature (°C) | -40~75 | -40~75 | -40~75 | ||||||
Storage Temperature (°C) | -45~85 | -45~85 | -45~85 |
Applications
- FTTH PON (GPON/EPON) network
- CATV System
- Telecommunication networks
- Local Area Networks (LANs)
- Metro networks
- Data processing networks
- Industrial, military and medical
- Equipment Test
