1U rack OLT with 2-PON port – CCTV Application
Each PON system supports maximum 256 Logical Link Identifiers (LLID) and 1.25Gbps bandwidth independently. This OLT adapts to counties, towns and villages fiber network access. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.

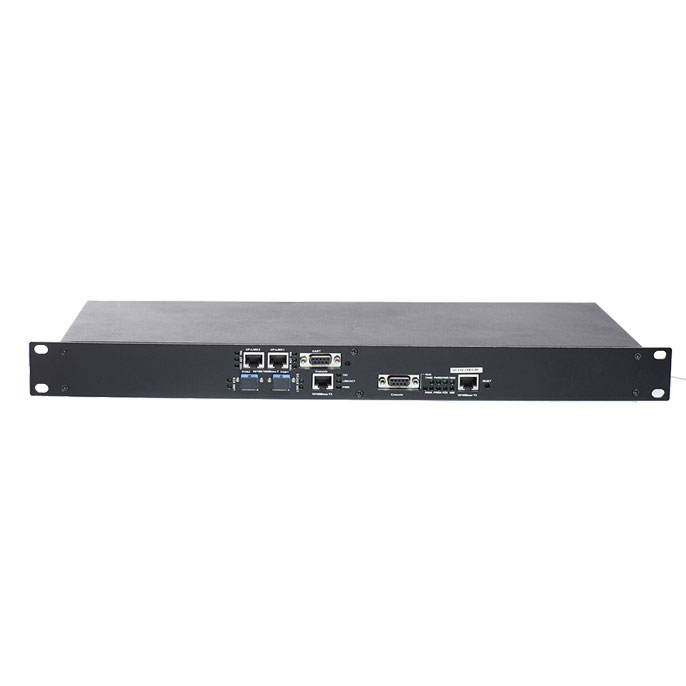

TL6002C meets China Telecom EPON standards.TL6002C is a small 1U rack type 2-PON OLT. It contains one piece 2-PON OLT card and one piece NMS card inside. TL6002C works with TL6200 and TL300 series ONU and ODN, to establish a passive optic network. The whole system supports 2-PON, each PON port supports 32pcs ONU within 20KM (64 pcs ONU within 10KM). It supports 10 ~ 20km transmission distance at the base of high bandwidth,and supports full line speed L2/L3 transition capacity.
- Highly reliable case, strong adaptivecapacity to environment
- Layer 2 aggregation switching
- Perfect network management function
- Strong QOS function
- Rich OAM function
1U case,Good shielding measures
Layer 2 wire-speed forwarding; support rich layer 2 protocols
8K MAC address list
Uplink port supports electronic port modules andoptical port modules, which can be configured flexibly as required
Support GUI based graphical interface
Support in-band management, out-of-band management
Support online upgrade of device software
Support flexible DBA, uplink and downlink trafficrate-limited
Support IP ToS, IEEE802.1p
Port based traffic control, traffic shaping
Supports up to 512 LLID
Support ONU automatic identification, automaticfinding, and automatic registration
Support the function of automatic loop back test tosingle link
Strong VLAN function, including VLAN Stacking, Trunk,Translation
Support flexible controllable multicasting, supportIGMP snooping
- Each PON support 1:64 splitting ratio ( The maximum quantity of 128 ONUs)
- Hot plug PON fibber module design, the farthest 20Km transmission distance
- Support 128 bits triple churning function to ensure the confidential for the data transmission
- Support dynamic bandwidth distribution DBA algorithm
| Parameter | Specifications |
| Operating wavelength | 1310nm (RX)/1490nm (TX) |
| Optical power | +2 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:32 |
| Capacity | 2 PON, max 128 ONUs |
| MAC | 8K |
| Uplink port | 2 10/100/1000 Ethernet RJ45 ports |
| PON port | 2 SC/FC fiber ports |
| Control port | RJ45, RS232, to debug the device |
| MTBF | 100,000 hours |
| EPON traits | Support IEEE802.3ah |
| Support DBA with minimum 1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Protocols supported | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Network management | Support GUI management based on SNMP |
| Support Local serial interface management and local serial interface management and Telnet GUI management based on CLI | |
| Other functions | Support 1GMPv1/v2 protocol report,query and leave message mouse |
| Support DHCP Snooping | |
| Support Ipv4 address learning based at DHCP Snooping | |
| Support ARP Snooping, QoS etc | |
| Max optical power of the module card | DC-48V or AC220V |
| Operating temperature | -10 ~ 55℃ |
| Storage temperature | -40 ~ 70℃ |
| Humidity | 5% ~ 90% non-condensing |
| Dimension | 481mm(length) x 309mm(width) x 44mm(height) |
