Electrically Isolated SMA-905 Cantilevered Patch Cord

Electrical Isolated High Precision SMA905 ferrule, Optional Stainless steel tube or PVC protecting jacket

General Details

SMA905 produced with connector made of ferrule or metal with flat end face , it assembled with precisely polished large core fiber, could meet low power laser power transfer or communication signal transfer. Beside it, the SMA905 connector with special treatment, which enable it applied in voltage potential environment.

Features
  • Electrode isolated SMA905 connector
  • High Precision SMA905 ferrule
  • Optional Stainless steel tube or PVC protecting jacket
  • Variety option of large core optical fiber
Specifications

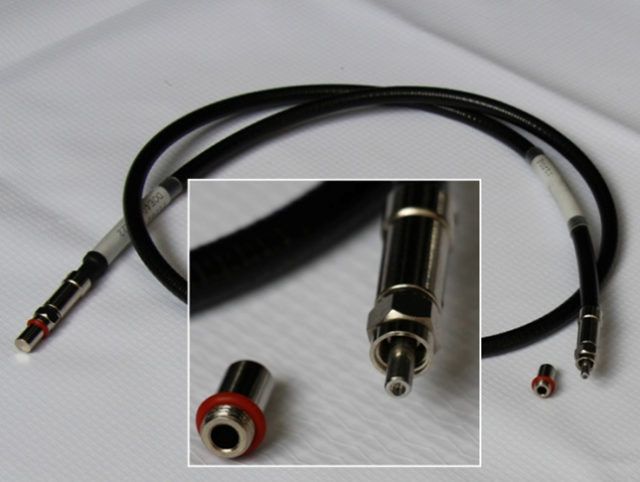

Product Illustration

sma905 patch cord

Ordering Information
TL-SMA905-A-B-C-D-E –F-G
TL-SMA905-A-B-SMA905-C-D-E-F-G

A:  Ferrule type B:  Fiber  Length (m) C:  Fiber Specifications D:  Fiber Jacket E:  Dust Cap F:  Transmission Wavelengths G:  Transmission power
C:  Ceramic
S:  Stainless steel
1
2
3
x-Customization
SM:   9/125um   Single Mode SM
OM1: 62.5/125um Multimode MM
OM2: 50/125um  Multimode MM
SI 40/125-22/220
SI 100/140-22-250
SI 105/125-22/250
SI 200/220-22/500
SI 300/330-22/500
SI 400/440-22/730
SI 800/840-22/1100
X-Refer to fiber specification
3P:  3.0mm PVC Jacket
3S:   3.0mm PVC metallic armorer
6:   6.0mm stainless steel armorer
M:  Metal Dust Cap
P:  Plastic Dust Cap
X- Customization X- Customization
Applications
  • Optical communication signal transmission
  • Laser lighting
  • Fiber optic sensors
  • Medial laser equipment
  • Spectral analysis
