Fujikura ELCT series Fusion Splicer Electrodes
General Details
A pair of electrodes is the key item to generate arc discharge for fiber splicing. The ELCT series is the exclusive electrodes for Fujikura Fusion Splicers. In order to perform Fujikura Splicers properly and completely, the genuine electrodes shall be utilized. Several types of the ELCT series are prepared for each model of Splicer. The ELCT series is supplied with a pair, for the anode and the cathode respectively.
Features
- Long life
- high-precision processing

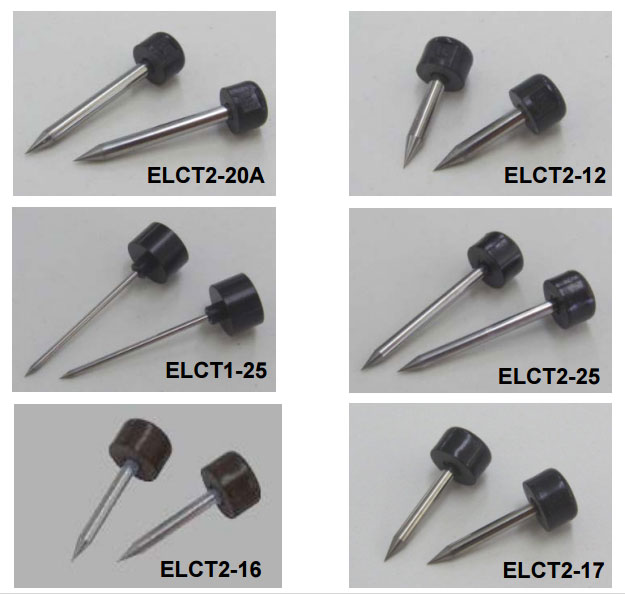

| Model | Use for |
| ELCT2-12 | FSM-12S, FSM-12R, SpliceMate(FSM-11R) |
| ELCT2-16 | FSM-30R, FSM-16S, FSM-16R |
| ELCT2-17 | FSM-15S, FSM-15R |
| ELCT2-20A | FSM-70S, FSM-70R, FSM-19S, FSM-19R, FSM-60S, FSM-60R, FSM-18S, FSM-18R, FSM-50S, FSM-50R, FSM-17S, FSM-17S-FH, FSM-17R |
| ELCT1-25 | FSM-45PM, FSM-45F, FSM-40PM, FSM-40F, FSM-40S, FSM-30S, FSM-20PMII, FSM-20PM, FSM-20CSII, FSM-20CS, FSM-20C |
| ELCT2-25 | FSM-45PM-LDF, FSM-45F-LDF, FSM-20RS , FSM-100P , FSM-100M |
| ELCT3-25-LDF | FSM-100P+ , FSM-100M+ |
Specifications
| Model | ELCT2-20A | ELCT2-12 | ELCT1-25 | ELCT2-25 | ELCT2-16 | ELCT2-17 | ELCT3-25-LDF | |
|
Diameter D | 2mm | 2mm | 1mm | 2mm | 2mm | 2mm | 3mm |
| Length L | 20mm | 12mm | 25mm | 25mm | 16mm | 17mm | 25mm | |
| Material | Tungsten alloy | |||||||
