OTDR EXFO AXS-110
Event dead zone: 0.8 m; Wavelengths: 850/1300/1310/1490/1550/1625 nm; Dynamic range: up to 37 dB; Battery autonomy: 8 hours
NOT AVAILABLE NOW
EXFO OTDR AXS-110 All-Fiber OTDR helps you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between patch panels within a data center or in-building cabling, where events are usually closely spaced.

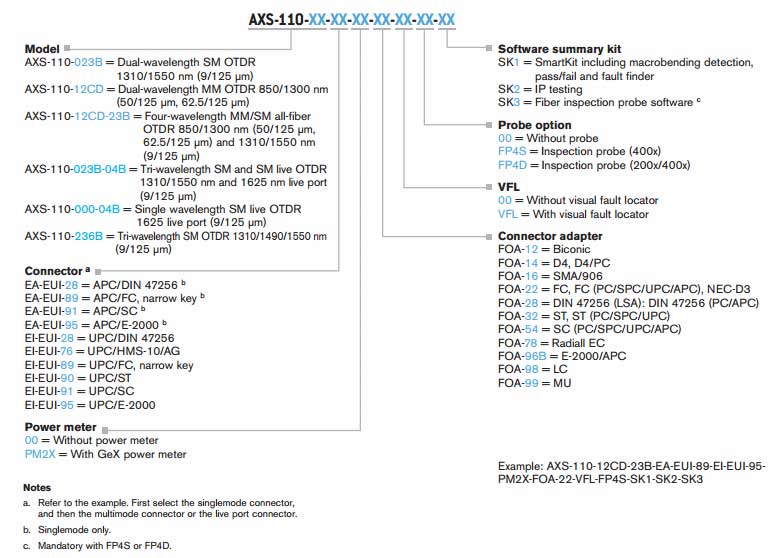

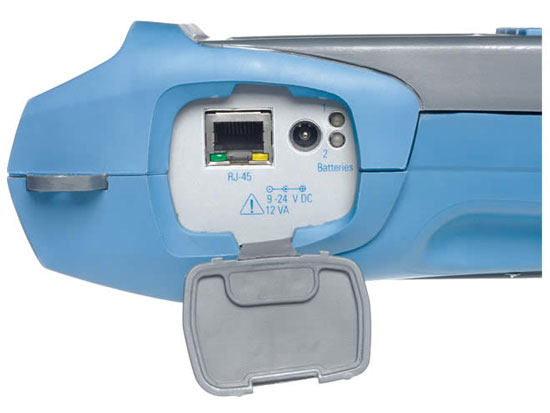

The EXFO OTDR AXS-110 comes in two models:
AXS-110 All-Fiber EXFO OTDR: Combining single mode and multimode capabilities for enterprise, campus and access networks, this model offers the 850nm, 1300nm, 1310nm and 1550nm wavelengths, with respective dynamic ranges of 24dB, 25dB, 32dB and 30dB.
AXS-110 Multimode EXFO OTDR: Optimized for enterprise testing on both 50um and 62.5µm multimode fiber, this model offers the 850nm and 1300 nm wavelengths, with respective dynamic ranges of 24dB and 25dB.
LASER SAFETY
1 CFR 1040.10 AND IEC 60825-1:2007
CLASS 1M WITHOUT VFL OPTION
CLASS 3R WITH VFL OPTION
Please contact us for the models you need.
- FasTrace function: one-touch testing for top user-friendliness
- 8-hour power autonomy
- USB port (memory-stick compatible) for easy data transfer
- Large internal memory (up to 500 results)
- Transflective color display for viewing clear results under bright sunlight
- Superior automated analysis for a better, easier and faster diagnosis
- Automatic pass/fail analysis and macrobend locating
| TECHNICAL SPECIFICATIONS a | |
| Wavelengths (nm) | 850/1300/1310/1490/1550/1625 |
| Dynamic range b (dB) | 24/25/37/33/35/37 |
| Pulse width (ns) | Multimode: 5, 10, 30, 100, 275, 1000 Singlemode: 5, 10, 30, 100, 275, 1000, 2500, 10 000 |
| Event dead zone c (m) | 0.8 |
| Attenuation dead zone (m) | 3.5/4.5/4/4.5/4.5/4.5 |
| Linearity (dB/dB) | ±0.03 |
| Loss threshold (dB) | 0.01 |
| Loss resolution (dB) | 0.01 |
| Sampling resolution (m) | Multimode: 0.08 to 2.5; Single mode: 0.08 to 5.0 |
| Sampling points | Up to 64 000 |
| Distance uncertainty d (m) | ±(0.75 + 0.0025 % x distance + sampling resolution) |
| Distance range (km) | Multimode: 0.1 to 40; singlemode: 0.65 to 260 |
| Typical real-time refresh (Hz) | 4 |
| Memory capacity | 500 traces |
| Measurement time | User-defined |
| Stable source output power e (dBm) | Multimode: –1.5; singlemode: –7.5 |
| Visual fault locator (optional) Laser, | 650 nm ± 10 nm, CW typical Pout of 1.4 mW open beam |
| OPTIONAL POWER METER f | |
| Calibrated wavelengths (nm) | 850, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1510, 1530, 1550, 1570, 1590, 1610, 16251430, 1450, 1470, 1490, |
| Power range (dBm) | 26 to –64 (GeX 2 mm) |
| Uncertainty | ±5 % ± 0.4 nW (up to 5 dBm) |
| Display resolution (dB) | 0.01 (–54 dBm to Pmax) 0.1 (–54 dBm to –64 dBm) 1 (–64 dBm to min) |
| Automatic offset nulling range g | Maximum power to -38 dBm |
| Tone detection (Hz) | 270/1000/2000 |
| CW typical Pout of 1.4 m | W open beam |
| GENERAL SPECIFICATIONS | |
| Size (H x W x D) | 250 mm x 125 mm x 75 mm (9 7/8 in x 4 15/16 in x 3 in) |
| Weight | 1 kg (2.2 lb) |
| operating Temperature | –18 °C to 50 ° (14 °F to 122 °F) |
| storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Relative humidity | 0 % to 95 % non-condensing |
| Power | Li-ion batteries; 8 hours of continuous operation as per Bellcore TR-NWT-001138 |
| Warranty (years) | 1 |
a All specifications valid at 23 °C ± 2 °C (73.4 °F ± 3.6 °F) with an FC/PC connector, unless otherwise specified.
b. Typical dynamic range with longest pulse and three-minute averaging at SNR = 1. Multimode dynamic range is specified for 62.5 µm fiber; a 3 dB reduction is seen when testing 50 µm fiber. AXS-11-12CD-23B is 24/25/32/30.
c. Typical dead zone for multimode reflectance below –35 dB and singlemode reflectance below –45 dB, using shortest pulse.
d. Does not include uncertainty due to fiber index.
e. Typical output power is given at 1300 nm for multimode output and 1550 nm for singlemode output.
f. At 23 ºC ± 1 ºC, 1550 nm and with FC connector. With OTDR in idle mode, battery operated.
g. For ±0.05 dB, from 18 ºC to 28 ºC.
- Data centers
- Singlemode and multimode fiber networks
- LAN/WAN testing
- Private network testing
