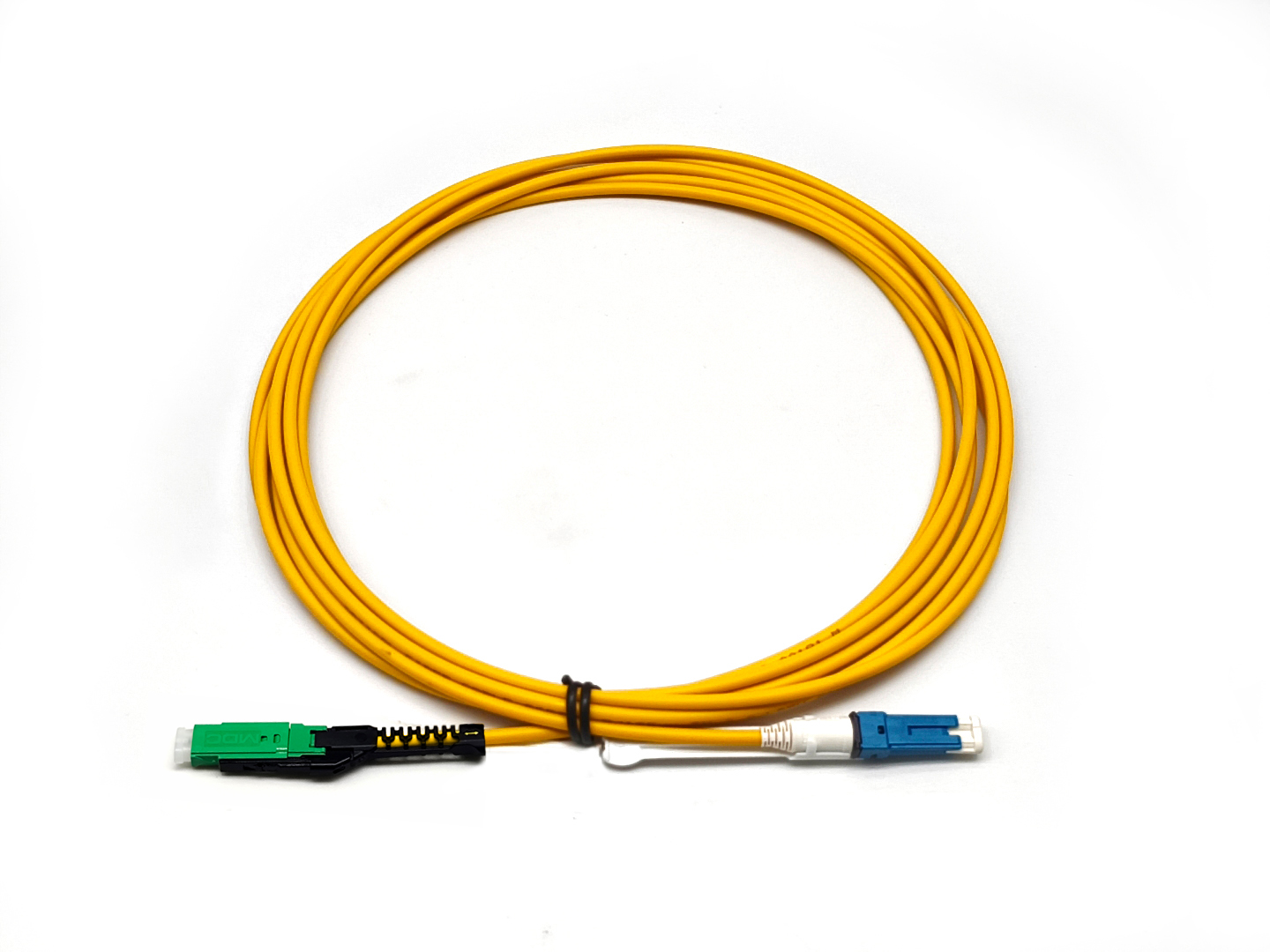

MDC – CS Patch Cord
Connector: MDC - CS, Classification: Singlemode OS1, OS2, Multimode: OM3, OM4, and OM5, Jacket: 2.0mm Cores: Duplex
General Details
Tarluz offers a variety of high-quality fiber optic patch cords (also known as fiber jumpers, fiber patch cords, or optical patch cables). Our fiber optic patch cord has a good reputation worldwide, and our optical patch cords Meet or exceed Telcordia standards. Applications include Ethernet, Fiber Channel, Infiniband, ATM & Internet.
Ordering Instruction
| Item | Plating material | PVC, LSZH, OFNP |
| 1 | Connector A | MDC |
| 2 | Polishing type | UPC (Ultra Physical Contact) <-50dB APC(Angled Physical Contact) <-60dB |
| 3 | Fiber type | Single Mode 9/125μm OS1, OS2, OM1, OM2, OM3, OM4, OM5 |
| 4 | Connector B | CS |
| 5 | Polishing type | UPC (Ultra Physical Contact); <-50dB APC(Angled Physical Contact) <-60dB |
| 6 | Fiber count | Duplex |
| 7 | Jacket diameter (mm) | Ø2, Ø1.6 |
| 8 | Length (m) | L=1, 2, 3, 4…………meter or customized |
Features
- Triple fibre density in the patch area
- Two 1.25mm ferrules in one connector housing
- Compatibility with transceivers like QSFP-DD or OSFP
- Simple polarity change
- Telcordia GR-326 and TIA-568 compliant
- Various fiber types and wavelengths, typical 9/125um single-mode, 62.5/125nm multimode (OM1), and 50/125nm multimode (OM2, OM3, OM4, and OM5)
- Good packing, competitive prices and very fast delivery
Specifications
| Parameters | Single-mode OS2 |
Multimode OM3/OM4/OM5 |
||
| Connector A | MDC | |||
| Connector B | CS | |||
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss (dB) | Maximum ≤0.25 Typical ≤0.15 |
Maximum ≤0.25 Typical ≤0.15 |
||
| Return Loss (dB) | ≥45 | ≥55 | ≥60 | N/A |
| Repeatability (dB) | IL≤0.2 RL≤5 | IL≤0.2 | ||
| Vibration (dB) | IL≤0.2 RL≤5 | IL≤0.2 | ||
| Exchangeability (dB) | IL≤0.2 RL≤5 | IL≤0.2 | ||
| Vibration (dB) | ≤0.2 | |||
| Durability | ≤0.2 typical change, 500 matings | |||
| Operation Temperature (℃) | -10 ~ +70 | |||
| Ferrule Material | Zirconia Ceramic | |||
| Jacket Material | LSZH, OFNR, OFNP | |||
| Cable Length (m) | 1, 2, 5, 10 or customized | |||
| Cable Diameter (mm) | Ø2.0 | |||
Applications
- Data center
- Telecommunication networks
- LAN and WAN
- Broadband network
