Sumitomo FH seires Fiber Holders
TYPE-71C/C+, TYPE-81C, TYPE-Q101-CA/CA+, T-55, TYPE-Q101-VS/VS+, TYPE-201VS/e-VS, TYPE-QH201e-VS, TYPE-100S/Se, TYPE-71M12, TYPE-81M12, TYPE-Q101-M12, TYPE-201M4/e-M4, TYPE-QH201e-M4
General Details
- Fiber holders are designed to work with Sumitomo Electric fusion splicers and help load optical fiber or cable correctlyl in the splicers.
- The fiber holders are supplied in pair for the left and right. Select holders according to the fiber count and fiber coating diameter being spliced.
Specifications
| Specifications | |||
| Applicable number of fiber | Single to 12-fiber ribbon | ||
| Fiber holding method | Magnetic clamp | ||
| Fiber Holder placing onto splicer | Guide-pin system with two pins per one side of Fiber Holder | ||
| Dimensions | FHS series : 16(W) x 41(L) x 8(H) mm / FHM, FHD & FHC series : 16(W) x 38(L) x 8(H) mm | ||
| Material | Base plate : Plastic / Lid : Carbon steel (except FHS-025/LB5) | ||
| Applicable Model* | Fusion Splicer | Single | TYPE-71C/C+, TYPE-81C, TYPE-Q101-CA/CA+, T-55, TYPE-Q101-VS/VS+ TYPE-201VS/e-VS, TYPE-QH201e-VS, TYPE-100S/Se |
| Ribbon | TYPE-71M12, TYPE-81M12, TYPE-Q101-M12, TYPE-201M4/e-M4, TYPE-QH201e-M4 | ||
| Fiber Cleaver | FC-7R-F, FC-7R-M, FC-7M series, FC-6RM series, FC-6M series | ||
| Hot Jacket Remover | JR-6 series (except FHS, FHD and FHC series) | ||

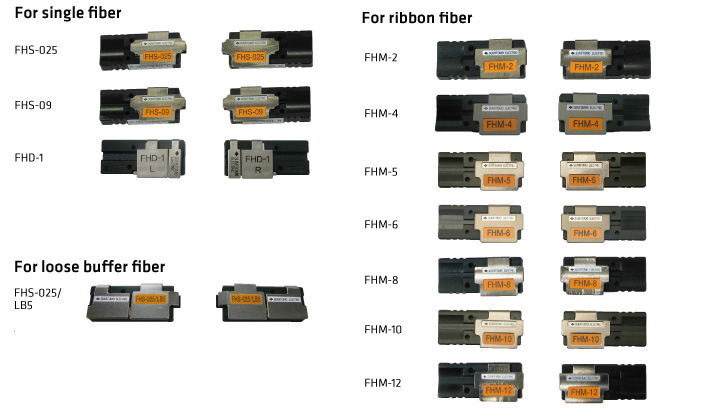

| Application | ||||||
| Part No. | FHS-025 | FHS-09 | FHS-025/LB5 | FHD-1 | FHC-3 | FHM-2 |
| Fiber | Single 250um |
Single 900um | Single 900um Loose buffered fiber | Single 250um Drop / Indoor cable | 3mm cable | 2-fiber ribbon |
| Part No. | FHM-4 | FHM-5 | FHM-6 | FHM-8 | FHM-10 | FHM-12 |
| Fiber | 4-fiber ribbon | 5-fiber ribbon | 6-fiber ribbon | 8-fiber ribbon | 10-fiber ribbon | 12-fiber ribbon |
