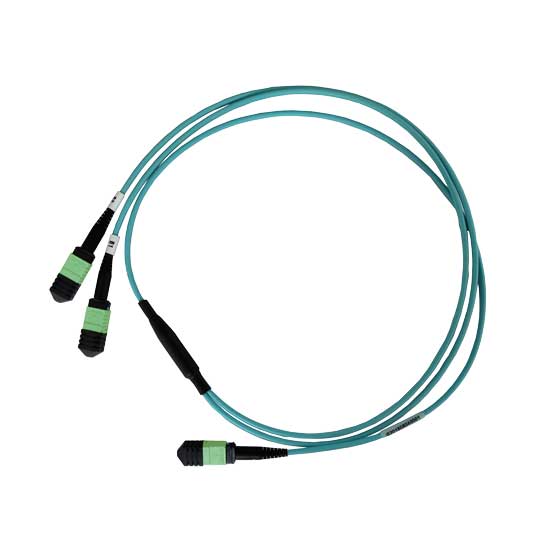

InfiniBand MPO-12/APC-to-2x MPO12/APC Multimode Splitter Fiber Cable
8 fiber MPO to MPO Splitter Patch cord is for AI, HPC network, with OM3, OM4 fiber.
General Details
TARLUZ MPO-12/APC-to-2xMPO12/APC (4-channel-to-two 2-channel splitter) passive optical cable, is specially designed for linking InfiniBand and Ethernet multimode twin-port OSFP, single-port OSFP, and QSFP112 transceivers together.
The 4-channel end MPO-12/APC is inserted into a Twin port OSFP, 800Gb/s transceiver. The 2-channel ends MPO-12/APC are inserted into two, single-port 400Gb/s OSFP and/or QSFP112 transceivers which with only 2 fibers can output 200G rates. Two splitter fiber cables are used in the twin-port OSFP transceiver enabling four, 2-channel ends to four transceivers.
Features
- 100% tested, high quality and reliability
- Low insertion loss
- Support SM optic fiber
- Special specification available upon custom request
- Flexible round outer jacket for easy installation
- Supports InfiniBand, Ethernet and NVLink protocols
Specifications
| Optical Parameters | ||||
| Connector Type | MPO-12/APC MM, female Elite | |||
| Insertion Loss (dB) | ≤0.35 | |||
| Return Loss (dB) | ≥35 | |||
| Polarity Method | Type B | |||
| Durability (dB) | ≤0.2 500 times mating | |||
| Tensile Strength (kgf) | 10 | |||
| Working Temperature (℃) | -20 ~ +70 | |||
| Measurement Wavelength (nm) | 850 | |||
| Geometry Parameters | ||||
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of Curvature (mm) | 500 | – | 50 | – |
| Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Item | Min | Max | ||
| Fiber Height (nm) | 1000 | 3000 | ||
| Max Fiber Height Error (nm) | 600 | |||
| Adjacent Fiber Height Error (nm) | -300 | +300 | ||
| Avg. Fiber Height Error (nm) | -300 | +300 | ||
| Central Concave (nm) | 300 | |||
Applications
- Optical short-reach high speed links in data centers
- Data processing and storage systems
