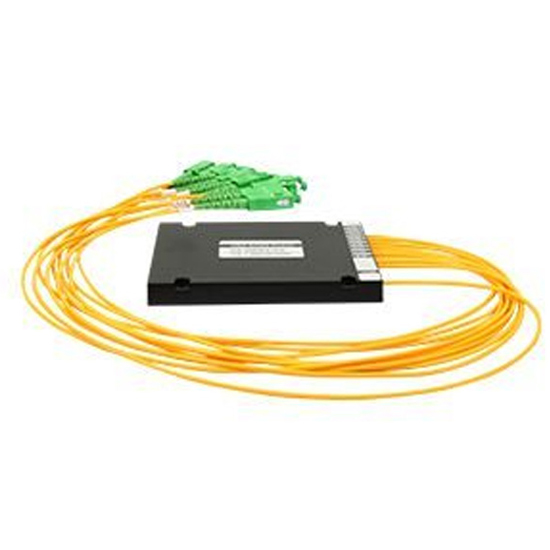

DWDM Module 100G/200G Module type (4, 8, 16-Channel)
Module type 100G/200G DWDM Module (4, 8, 16-Channel)
General Details
The 100G/200GHz Module type dense wavelength division multiplexer (DWDM module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path. It can be used for wavelength add/drop in telecommunication network system.
Features
- Low Insertion Loss
- High channel isolation
- Wide passband
- Excellent stability and reliability
- Epoxy free on optical path
Specifications
| Parameter | 4-Channel | 8-Channel | 16-Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength (nm) | ITU 200GHz Grid | ||||||
| Channel Spacing (nm) | 200 | ||||||
| Channel Passband (@-0.5dB bandwidth)(nm) | >0.5 | ||||||
| Insertion Loss (dB) | ≤1.6 | ≤3.5 | ≤4.2 | ||||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple (dB) | <0.3 | ||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity(dB/°C) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
| Polarization Dependent Loss (dB) | <0.1 | <0.1 | <0.15 | ||||
| Polarization Mode Dispersion (ps) | <0.1 | ||||||
| Directivity (dB) | ≥50 | ||||||
| Return Loss (dB) | ≥45 | ||||||
| Maximum Power Handling (mW) | 300 | ||||||
| Opterating Temperature(°C) | -5 ~ +75 | ||||||
| Storage Temperature(°C) | -40 ~ +85 | ||||||
| Package dimension(mm) | A: L100 ×W80×H10 | ||||||
| B: L120×W80×H18 | |||||||
| X: L141×W115×H18 | |||||||
1. Above specifications are for devices without connector.
2. Specifications may change without notice.
Applications
- DWDM Network
- Channel Add/Drop
- Wavelength Routing
- Fiber Optical Amplifier
