MPO/MTP Optical Light Source
850/1300 or 1310/1550nm; 0 Hz 270Hz 1KHz 2KHz; 9/125 50/125 62.5/125; SM/MM MPO/PC 12/24 female interface

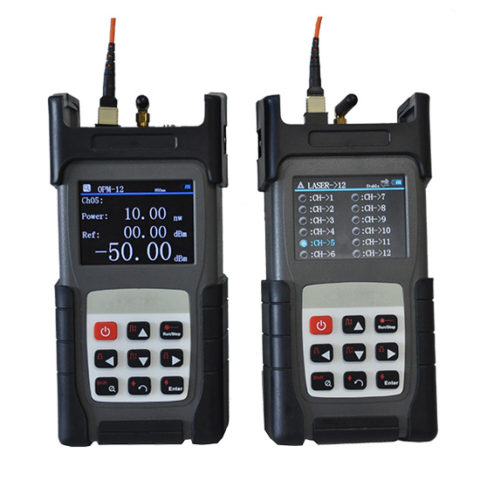

TL3224 MPO/MTP Optical Power Meter and TL3124 MPO/MTP Optical Light Source is an Optical Test Solutions especially designed for Data Center on site testing. The MPO/MTP Optical Power Meter and MPO/MTP Optical Light Source could be applied in pair to test the insertion loss for MPO/MTP Patch Cord Insertion Loss, Polarity Condition, etc. it support data storage, threshold analysis as well as data uploading, is much more efficient compared with traditional light source and power meter. It is indispensable for data center application.
- 12 or 24 -channel, Channel number customization acceptable
- High-resolution color display
- A key switch four functional interfaces (single-power, 12-channel power meter, MPO Polarity, Histogram interface)
- USB interface to directly copy the data to a computer, user-friendly data the user can customize the threshold
- Built-in 3500mA high-capacity lithium battery, use of time more than 10 hours
- Ergonomic design, easy operation
| TL3124 MPO Optical Light Source | |
| Laser Detector | FP LD |
| Wavelengths | 850/1300 1310/1550 |
| Frequency | 0 Hz 270Hz 1KHz 2KHz |
| Fiber Type | 9/125 50/125 62.5/125 |
| Fiber Interface | SM/MM MPO/PC 12/24 female interface |
| Output Power | >-10dBm |
| Stability | ±0.2(15min.) ±0.5(8hours) |
| Channels | 12, 24 or customized |
| Working Temperature | -5°C ~ +40°C |
| Storage Temperature | -5°C ~ +40°C |
| Continuous Working Hours | > 10 hours |
| Weight | < 850g |
| Dimensions | 220 x 110 x 70mm |
- Data center
- MPO patchcord manufacturing
- R & D
