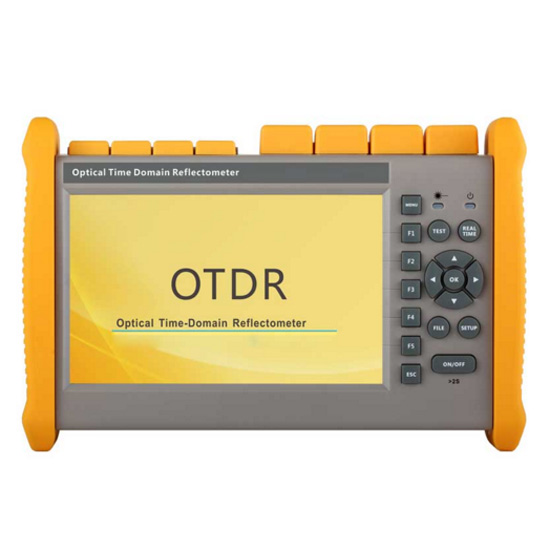

OT700 series OTDR
SM OTDR, MM OTDR, visual fault locator), PON online test, Optical Power Meter, Optical Laser Source, Fiber Microscope, Ready for all kinds of environment.
This FTTH series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; Tarluz OTDR is specially designed for that kind of application. It’s economic, having outstanding performance.
This OTDR manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes OT700 series more smart and compact and multi-purpose.
Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, OT700 Series can be your best assistant.
- Integrated design, smart and rugged
- IP65 protection level, outdoor enhanced
- 7-inch anti-reflection LCD screen
- PON online test module (1625nm) is optional
- MMF test module (850/1300nm) is optional
- Support multi-language display and input
| Parameters | Specifications |
| OTDR Module | |
| Pulse Width | Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us, 2us, 5us, 10us, 20us Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us, 2us |
| Testing Distance | Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km |
| Sampling Resolution | Min. 5cm |
| Sampling Point | Max. 128,000 points |
| Linearity | ≤0.05dB/dB |
| scale Indication | X axis: 4m~70m/div Y axis: Min. 0.09dB/div |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance x 3 x 10-5 + sampling resolution) (excluding IOR uncertainty) |
| Reflectance Accuracy | Single mode: ±2dB Multimode: ±4dB |
| IOR Setting | 1.4000 ~ 1.7000, 0.0001 step |
| Units | KM, miles, feet |
| OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) |
| Testing Modes | Visual fault locator: Visible red light for fiber identification and troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output) Field microscope probe |
| Fiber Event Analysis | -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps) |
| Other Functions | Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison |
| VFL Module (Visual Fault Locator, as standard function): | |
| Wavelengths | 650nm (±20nm) |
| Power | 10mw, CLASSIII B |
| Measurement Range | 12km |
| Connector | FC/UPC |
| Launching Mode | CW/2Hz |
| OPM Module (Optical Power Meter, as optional function): | |
| Wavelength Range | 800 ~ 1700nm (±20nm) |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test Range | Type A: -65~+5dBm (standard); Type B: -40 ~ +23dBm (optional) |
| Resolution | 0.01dB |
| Accuracy | ±0.35dB±1nW |
| Modulation Identification | 270/1k/2kHz |
| Connector | FC/UPC |
| OLS Module (Optical Laser Source, as optional function): | |
| Working Wavelengths | 1310/1550/1625nm (±20nm) |
| Output Power | Adjustable -25 ~ 0dBm |
| Accuracy | ±0.5dB |
| Connector | FC/UPC |
| FM Module (Fiber Microscope, as optional function): | |
| Magnification | 400X |
| Resolution | 1.0um |
| View of Field | 0.40 x 0.31mm |
| Working Temperature | -18℃ ~ 35℃ |
| Dimensions | 235 x 95 x 30mm |
| Sensor | 1/3 inch 2 million of pixel |
| Weight | 150g |
| USB | 1.1/2.0 |
| Adapter | SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) |
| General Specifications | |
| Display | 7 inch TFT-LCD with LED backlight (touch screen function is optional) |
| Interface | 1 x RJ45 port, 3 x USB port (USB 2.0, Type A USB x 2, Type B USB x 1) |
| Power Supply | 10VDC, 100VAC to 240VAC, 50~60Hz |
| Operating time | 12 hours, Telcordia GR-196-CORE |
| Battery | 7.4VDC/4.4Ah lithium battery (with air traffic certification) |
| Battery Charging Time | |
| Power Saving | Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes |
| Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others) |
| Operating temperature | -10℃ ~ +50℃, 95% (non-condensation) |
| Storage temperature | -20℃ ~ +75℃, 95% (non-condensation) |
| Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter |
| Dimensions | 253 x 168 x 73.6mm |
| Weight | 1.5kg (including batter) |
Notes:
- Typical, backlight off, sweeping halted at 25℃, 12 hours typical continuous testing.
- Model S2 are integrated with optical filter, which allow them to test PON network online (by using 1625nm wavelength) and will not interrupt the fiber signal.
- Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; the level difference between the RMS noise level and the level where near end back-scattering occurs.
- Event dead zone is measured with pulse width of 3ns; attenuation dead zone is measured with pulse width of 5ns.

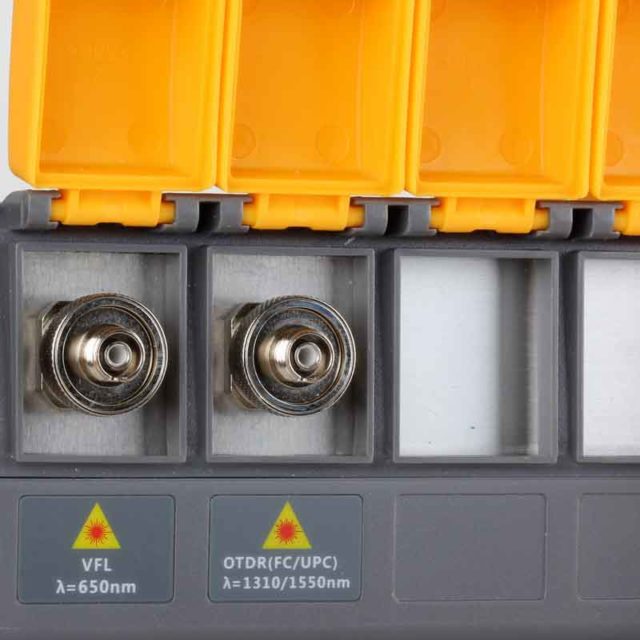

- 1310/1550nm laser source uses OTDR1 port, and 1625nm or 850/1300nm uses OTDR2 port.
- FTTX test with PON networks
- CATV network testing
- Access network testing
- LAN network testing
- Metro network testing
- Lab and Factory testing
- Live fiber troubleshooting
OT700-A-B-C-D-E-F
| Item | Description |
| A: Wavelengths | M: 850/1300nm S1: 1310/1550nm S2: 1310/1550/1625m, 1625nm with filter SM: 850/1300nm, 1310/1550nm |
| B: Dynamic Range | M: 19/21dB (850/1300nm) D1: 35/33dB (1310/1550nm) D2: 43/41dB (1310/1550nm) D3: 45/43dB (1310/1550nm) T1: 40/38/38dB (1310/1550/1625nm) T2: 43/41/41dB (1310/1550/1625nm) Q1: 19/21, 35/33dB (850/1300nm , 1310/1550nm) Q2: 19/21, 40/38dB (850/1300nm , 1310/1550nm) |
| C: Power Meter Module | A: -65~+5dBm B: -40 ~ +23dBm |
| D: Light Source Module | L: With light source |
| E: Fiber Microscope | F: With Microscope |
| F: Fiber Connector | SC: SC/UPC ASC: SC/APC FC: FC/UPC AFC: FC/APC X: customized |
Example: OT700-S1D2-SC: 1310/1550nm, 43/41dB, with SC/UPC fiber interface, touch screen.
